grinder



APT-507

4″ Angle Grinder (safety trigger)
Specifications:
Free Speed: 11,000 r.p.m.
Disc Size: 4”
Length:9”(230 mm)
Avg. Air Cons: 4.2 cfm(119 l/min)
Air Inlet: ¼”
Hose Size: 3/8”
Air Pressure: 90 psi (6.3 kg/cm2)
NetWeight: 4 lbs(1.82 kg)
Sound Level:86 dBA

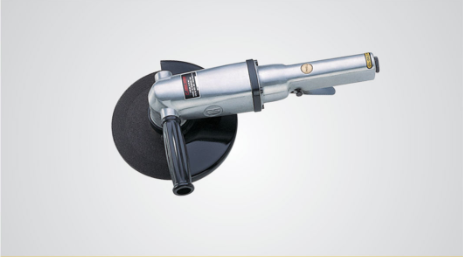

APT-508

7″ Angle Grinder (safety trigger)

Specifications:
Free Speed: 7,000 r.p.m.
Disc Size: 7¨
Length: 13.5¨(343 mm)
Avg. Air Cons: 6.5 cfm(184 l/min)
Air Inlet: 3/8¨
Hose Size: 3/8¨
Air Pressure: 90 -100psi (6.3-7
kg/cm2)
NetWeight: 7 lbs(3.2 kg)
Sound Level:86dBA

APT-501A

1/4″ Mini Die Grinder

Specifications:
Free Speed: 22,000 r.p.m.
Collect Size: 1/4¨(6mm)
Length: 5.75¨(145 mm)
Avg. Air Cons: 9.5 cfm(270 l/min)
Air Inlet: 1/4¨
Hose Size: 3/8¨
Air Pressure: 90 psi (6.3 kg/cm2)
Net Weight: 1.1 lbs(0.5 kg)
Sound Level:72dBA

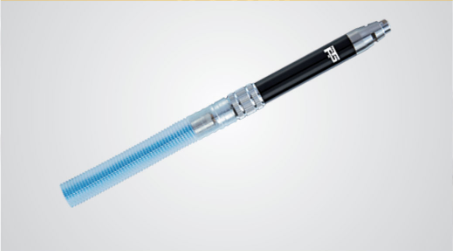

APT-502H

 1/8″ Micro Die Sander

Specifications:
Free Speed: 60,000 r.p.m.
Collet Size.: 3mm
Length:135 mm
Air Inlet: ¼”
Hose Size: ¼”
Air Pressure: 90 psi (6.3 kg/cm2)
Net Weight: 0.44 lbs(0.2 kg)

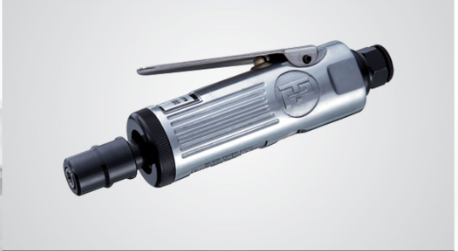

APT-534

1/4″ Die Grinder

Specifications:
Free Speed: 22,000 r.p.m.
Collet Size.: 6mm
Length:160 mm
Air Inlet: ¼”
Hose Size: 3/8”
Air Pressure: 90 psi (6.3 kg/cm2)
Net Weight: 0.8 lbs(0.36 kg)
Sound Level:94 dBA

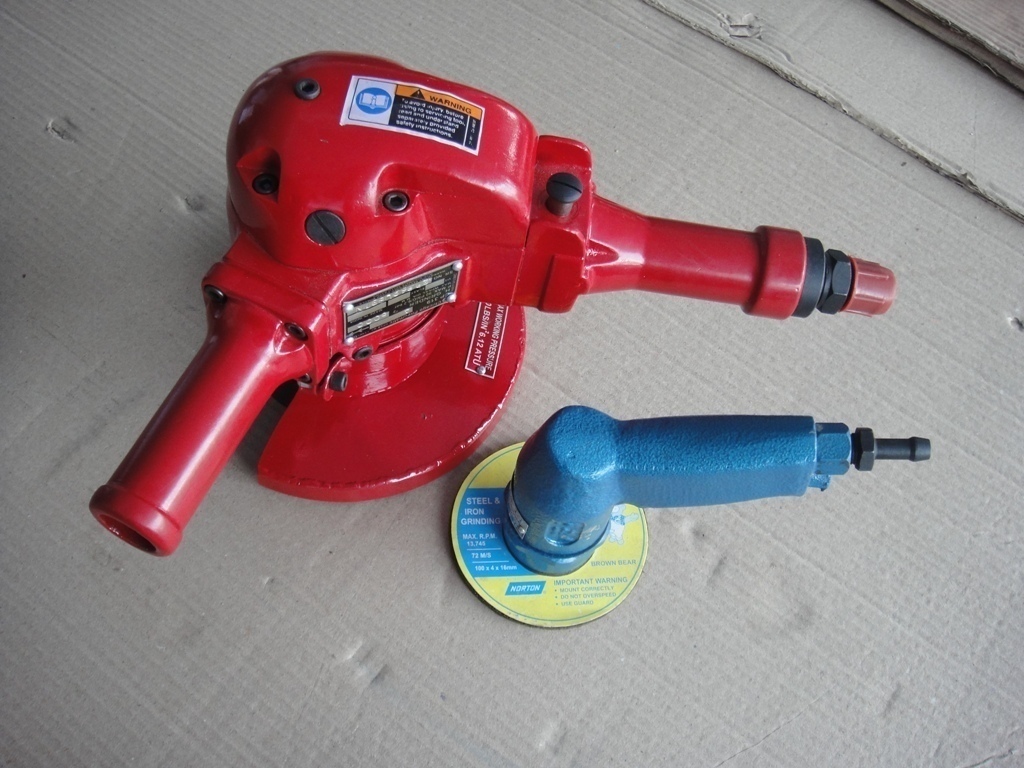

Angle Grinders & Sander

Model

Application

Free Speed
(rpm)

Wheel Capacity Diameter
(mm)

Approx Weight
(kg)

Air Consumption
(m3/min at 6.33kg/cm2)

Air Inlet Connection

BSO-17

Sanding Only

17000

125 Sanding Disc

1.10

0.40

1/4″ NPT

ASG-160

Grinding/Sanding

6000

180 Sanding Disc/180 DC/125 Resinoid Cup

5.4

1.59

1/2″ BSP

ASG-145

Grinding/Sanding

4500

230 Sanding Disc/230 DC/150 Resinoid Cup

5.4

1.59

1/2″ BSP

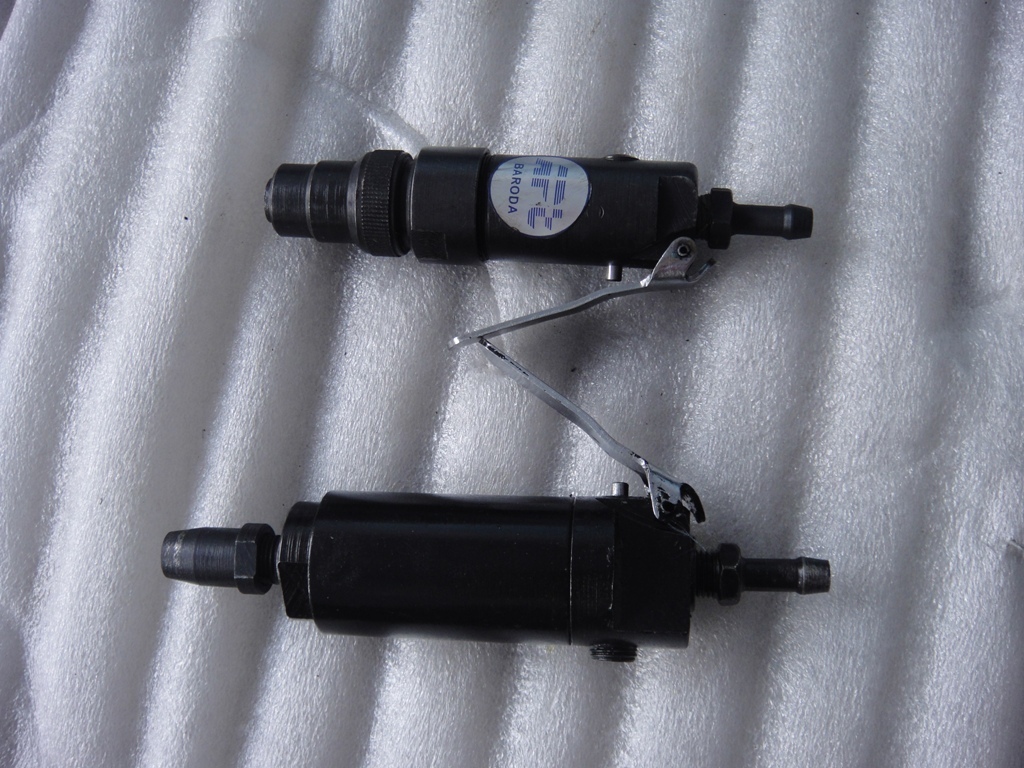

Pneumatic Hand Grinders



Model Free Speed Outer Dia.
(mm)
Overall Length
(mm)
Motor Housing Approx Weight
(kg)
Exhaust Air Consume.
m3/min at 6.33 kg/cm2
Air Inlet Connec. Stand Equip. Option Equip.
HG-1 35000 36 165 Steel 0.45 Front 0.5 1/4″ NPT 6mm Collet 1/4″ Collet

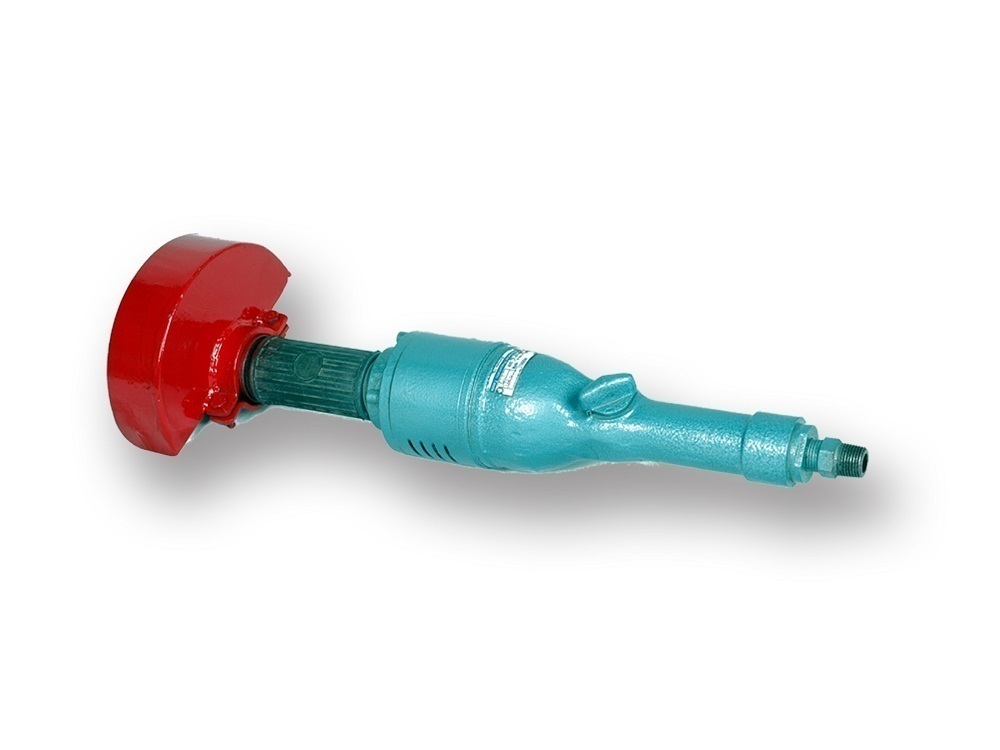

Heavy Duty Grinders

Model Free Speed (rpm) Wheel Diameter(mm) Wheel Width (mm) Approx Weight (kg) Air Consume m3/min at 6.33 kg/cm2 Air Inlet Connec. Standard Equipments
SCGS-60 6000 150 25 5.5 1.59 1/2″ BSP Wheel Guard, Wheel Collar, Wheel Nut
